Product and application brief
A headless pin nail has no enlarged head at its driven end. This fine construction nail is distinct from a small-headed brad and from a mechanical locating pin. Manufacturer catalogues place selected micro-pin series in trim, moulding and fine furniture applications; whether a particular joint is suitable still requires the selected fastener, substrate and assembly qualification.
Product forms and reference names
| Choice or field | What to identify |
|---|---|
| Straight-strip micro pins | SENCO identifies selected 23-gauge straight-strip micro pins with a headless end and diamond point. The gauge label alone does not establish dimensions or cross-brand compatibility. |
| Straight headless pin nails | Grabber distinguishes straight headless pin nails from headed brads in its pneumatic nail catalogue. Its point description differs from the selected SENCO series. |
| Fine-wire pin catalogue families | BECK A64 lists wire diameter, flattening, strip angle and tool references separately. Use the exact selected code and drawing, not a universal round-wire assumption. |
Headless end and wire section

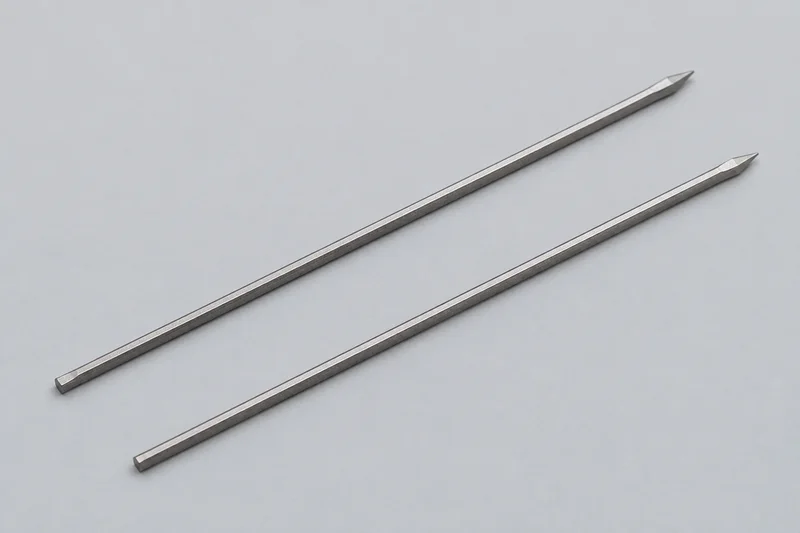

Confirm that the driven end is genuinely headless, rather than a reduced or transverse brad head. Record the wire cross-section and both section dimensions where relevant; diameter and flattened or square section are not interchangeable procurement fields. The AI appearance reference is not a measured section drawing.
Point geometry is a separate choice
The Grabber reference describes a chiseled point; the selected SENCO micro-pin records list a diamond point. Identify the required point from the selected model or drawing rather than treating all headless pins as one geometry. No universal splitting, penetration or holding performance is promised.
Strip format and selected tool
Confirm straight or other selected strip orientation, collation medium, pitch and magazine interface from the exact fastener and tool documentation. Record the tool make, model and compatible fastener-series code. Similar length or gauge wording is not proof of compatibility, and this page does not certify any tool combination.
Joint and finish requirements
Specify the trim and supporting substrate, thickness, access, visible surface requirement and intended joint role. Confirm the selected material and finish, adhesive-assisted assembly if applicable, corrosion exposure and installation qualification. A headless end is not evidence of structural capacity or a universally invisible result.
Standards and controlled acceptance
ASTM F1667/F1667M is a driven-fastener specification reference, not a claim that every collated pin or supplied product conforms. Obtain the applicable edition, selected type, controlled dimensions, acceptance criteria and any collation or tool-system requirements separately. Normative tables and FastenerBridge supply compliance have not been verified.
Specification fields
| Choice or field | What to identify |
|---|---|
| Product identity | Headless construction pin nail; selected manufacturer series or controlled drawing, not a mechanical locating pin. |
| Wire section | Round, square or flattened form as specified; actual section dimensions and tolerances from the selected drawing. |
| Length and point | Required length and measuring basis; chisel, diamond or other selected point identity. |
| Driven end | Headless end geometry; distinguish reduced-head brads. |
| Material and finish | Selected wire material, coating or finish and exposure requirements; verify the actual supplied code. |
| Collation | Strip orientation, pitch, medium, packaging and magazine interface separately from individual pin geometry. |
| Tool interface | Exact tool make/model and documented fastener-series match; no inferred cross-brand interchangeability. |
| Assembly and acceptance | Substrate and trim, joint function, access, sample or installation qualification, drawing revision and inspection documents. |
| Commercial enquiry | Quantity and destination; availability, supply scope and delivery require quotation confirmation. |
Common product questions
Is a headless pin the same as a brad?
No. The driven end of a headless pin has no enlarged head; a brad retains a small head. Wire section, point and collation still need separate identification.
Does 23 gauge establish tool compatibility?
No. Match the exact fastener code, section, length, strip and tool documentation. A shared gauge name is not a compatibility approval.
Are all headless pins diamond-pointed?
No. The selected SENCO records list diamond points while the Grabber reference uses a chiseled-point description. Confirm the chosen model or drawing.
Can these replace mechanical locating pins?
No. This page concerns driven construction nails, not machined dowel pins or self-clinching panel pins. Joint purpose and installation mechanism differ.
Related product choices
- Small-headed finish and brad nails
- Headed connecting nails
- Two-leg staples selection
- Mechanical pins — different product family
Product references
References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
