Finish and Brad Nails

Product detail · Updated 10 October 2026

Product and application brief

Finish and brad nails are single-shank, small-head driven fasteners for selected trim, moulding and finishing assemblies. The name alone does not define wire section, head geometry or tool interface. Specify the actual maker series or controlled drawing rather than treating finish, brad and gauge labels as universal dimensions.

Product forms and reference names

Choice or field	What to identify
Brad-labelled small-head nails	Grabber separates straight brads from finish-nail series. BECK also uses Brads / Finish Nails for selected GN constructions. Record the actual series, not an assumed naming equivalence.
Finish-labelled nails	Grabber lists straight and several angled finish series separately. Read head and wire geometry from the selected drawing.
Straight strip	Identify head orientation, wire section, strip assembly and magazine interface. Straight describes collation, not a universal material grade.
Angled strip	Identify actual strip angle and series. BECK DA and GN entries demonstrate separate wire flattening, head size and strip angle fields.
Headless pin nails — separate form	A very small head is still a head. Confirm actual geometry rather than substituting a pin-labelled or shared-gauge fastener.

Head and wire section are independent

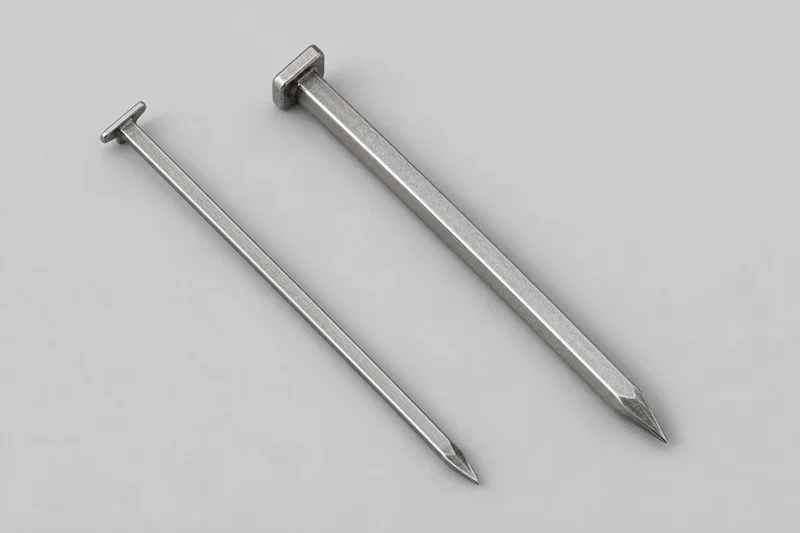

Give head shape, width, thickness and projection or offset, together with both dimensions of a flattened or rectangular wire section. State a round diameter only for a selected round-wire construction. A nominal gauge does not replace these measurements. The small transverse heads in the AI reference illustrate selected forms, not universal brad or finish geometry.

Straight versus angled is a system choice

Specify strip angle, cohering presentation, strip quantity and orientation, plus the exact tool model and approved fastener-series reference. Matching length or gauge does not prove interchangeability. An angled strip is not a bent nail shank. A loose-nail appearance reference does not show or qualify a collated magazine assembly.

Length, point and actual trim assembly

State length measurement datum, point form and orientation. Grabber describes a chisel point for selected brad/finish products, not every nail. Describe trim and receiving substrate, material stack, visible-head constraints and access. Use the responsible assembly specification for length, drive settings, spacing and retention; no generic penetration formula or load rating is adopted.

Formal standard, maker series and drawing

ASTM lists F1667/F1667M-21a as a driven-fastener specification covering nails, spikes and staples. Its public scope excludes most cohering materials and relative collated orientation. A standard reference therefore does not qualify strip or tool compatibility. Full normative dimensions, tolerances, material tests and acceptance requirements are not reproduced here. Request the applicable edition and controlled type or series drawing; no maker similarity statement is treated as standard equivalence or FastenerBridge compliance.

Material and finish require confirmation

Specify exact material, coating and exposure, not appearance alone. Maker bright, coated or stainless examples are not confirmed FastenerBridge availability or corrosion guarantees. Give lot inspection, documents, quantity by reference, packing and destination/date; actual supply, MOQ and delivery require quotation confirmation.

T-head nails within finish and brad selection

A T-shaped head is a transverse head profile, not a universal fastener size or tool family. SENCO identifies T-head forms within a straight-strip finish-nail series; BECK separately names selected T-nail series. The names overlap, but their parts are not automatically interchangeable.

Compare the head width, thickness and underside profile alongside the actual flattened shank section, length datum, point and strip presentation. A larger T-head or thicker section must be specified as a selected series or controlled drawing, not inferred from the word finish, brad or T-nail. Request the exact fastener-code and tool-interface documents; neither a shared gauge nor a similar outline proves fit, retention performance or substrate approval.

Use this page for the shared single-shank transverse-head selection brief. Headless pin nails, round-head connecting nails and two-leg staples retain their separate construction routes. The generic AI image shows transverse-head appearance only, not the geometry or scale of a particular T-nail series.

Specification fields

Choice or field	What to identify
Product identity	Finish/brad construction; maker series or drawing/revision; standard edition/type when required.
Head	Shape, width, thickness, projection/offset and installed visible-head requirement.
Wire section	Defined gauge plus actual round diameter or both flattened/rectangular dimensions and tolerances.
Length and point	Length datum, point shape/orientation; no universal penetration ratio.
Collation	Loose or collated; straight/angled strip, angle, cohering material, strip presentation and orientation.
Tool and assembly	Exact tool/approved fastener series; substrate, trim stack, access and controlled installation document.
Material and finish	Exact grade/coating, exposure, inspection and qualification records.
Commercial acceptance	Quantity per reference, pack/strip units, documents, lot checks, destination/date; quotation confirmation.

Common product questions

Are brad and finish nails universal gauge groups?

No. Manufacturers name their ranges differently. Identify head, actual wire section, length and selected series; gauge alone is not a complete dimensional definition.

Does matching gauge and length prove tool compatibility?

No. Head, wire section, strip angle, orientation and cohering presentation also matter. Use the exact approved fastener-series and tool reference.

Is a small-head brad the same as a headless pin?

No. A small projecting head is still a head. Confirm actual construction and keep headless pin nails separate from headed brads and mechanical locating pins.

Does an ASTM reference qualify the strip or assembly?

No. The public F1667/F1667M scope excludes most cohering materials and relative collated orientation. Normative type requirements and tool/assembly qualification need separate controlled evidence.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
