Headed Connecting Nails

Product detail · Updated 10 October 2026

Product and application brief

A headed connecting nail has one driven shank, a defined head and a point. This page develops the existing headed-nail range rather than treating it as an absent product. Choose the actual joint and construction before selecting a standard, maker series or tool. Small-head finish/brad nails, headless pins, large-head roofing nails and substrate-specific powered pins are separate choices.

Product forms and reference names

Choice or field	What to identify
Smooth shank	A substantially plain cylindrical shank is distinct from a profiled shank. Specify its wire diameter, surface condition and selected nail reference; a smooth exterior does not establish installed retention.
Ring shank	Annular ridges around the shank are distinct from a continuous helix. State the ring profile, profiled length and diameter convention using the selected drawing; do not infer holding capacity from the image.
Screw or spiral shank	A helically formed shank is still a selected driven-nail construction, not a machine thread for a mating nut. Identify the actual spiral/twisted profile rather than substituting a generic threaded screw.
Loose nail	Specify the individual head, shank, point, material and finish, pack quantity and the selected manual or other installation route. Loose general-purpose nails and collated tool fasteners are not the same presentation.
Collated nail	Strip and coil presentations have a separate carrier, orientation and tool interface. Plastic strip, paper or wire collation must be identified by exact selected series; nail diameter or strip angle alone is not a compatibility check.

Head, shank and point as separate choices

Record the full-head shape, bearing-face geometry and diameter; round-head framing examples do not cover every countersunk, domed or clipped-head nail. Identify smooth, ring or spiral shank and where the profile starts and ends. Diamond and chisel points are separate maker options; choose the controlled geometry without promising splitting behaviour.

Length datum and diameter convention

State whether nail length is measured below the head or by another drawing datum. Identify wire/core diameter and any maximum profiled diameter separately. A gauge, penny designation or nominal product name is a reference to be decoded, not a substitute for the drawing, units and tolerances. No numeric size table is supplied without a selected specification.

Loose, strip and coil are not interchangeable

For collated supply specify the complete nail/carrier series, strip or coil arrangement, collation angle, head arrangement, carrier material, pack and exact approved tool model. Confirm the tool manufacturer’s fastener list and current instructions. A maker’s statement about its own nail range is not FastenerBridge evidence of universal tool compatibility.

Substrate and installed joint

Describe wood-to-wood, board-to-timber or another actual joint, material stack, timber grade/condition, access and intended service. Specify the project’s installed condition and inspection requirements. Do not infer steel or concrete suitability, edge spacing, penetration, withdrawal resistance or load rating from a headed shape or nail length.

Material and finish follow the order

Record base material, selected finish/coating specification and exposure conditions separately. Bright, plated, hot-dip-coated and stainless maker examples do not establish our available stock or a universal corrosion duration. Confirm treatment/metal compatibility and required documents for the actual assembly; catalogue claims and AI metallic appearance are not batch evidence.

Standard identities and procurement boundary

DIN EN 10230-1:2000-01 is catalogued as loose steel-wire nails for general applications. ASTM F1667/F1667M-21a identifies a driven-fastener specification, not an approval of this enquiry product. Keep the selected standard edition, fastener designation, maker code and controlled drawing explicit. Naming either standard does not establish equivalent dimensions, collation/tool interchangeability, structural approval or FastenerBridge conformity.

Specification fields

Choice or field	What to identify
Reference and construction	Selected standard/designation and edition, maker series or drawing/revision; full head and smooth/ring/spiral profile.
Geometry	Head shape/diameter; wire and profiled diameters with measurement conventions; nail length/datum; profiled region and point; controlled tolerances.
Presentation and installation	Loose, strip or coil; carrier, orientation/angle and pack; exact tool model/approved fastener reference if applicable.
Assembly	Substrate and material stack, timber condition, intended joint, access and project-controlled installed condition.
Acceptance	Dimensional/visual requirements, marking and lot documents, selected material/finish evidence and any assembly-specific testing or qualification.
Commercial scope	Quantity and units, supplied pack/components, documents, destination and requested date; stock, MOQ and delivery require confirmation.

Common product questions

Are ring-shank nails the same as screw-shank nails?

No. Separate annular rings from a helical profile and identify the selected drawing; neither name supplies a generic holding-load guarantee.

Does matching a collation angle prove nailer compatibility?

No. Confirm the exact nail/carrier series, head, length and wire geometry against the selected tool’s approved fastener requirements.

Can a full round head make this a concrete or steel fixing?

No. Nail construction, substrate and any powered installation system require their own identification and qualification.

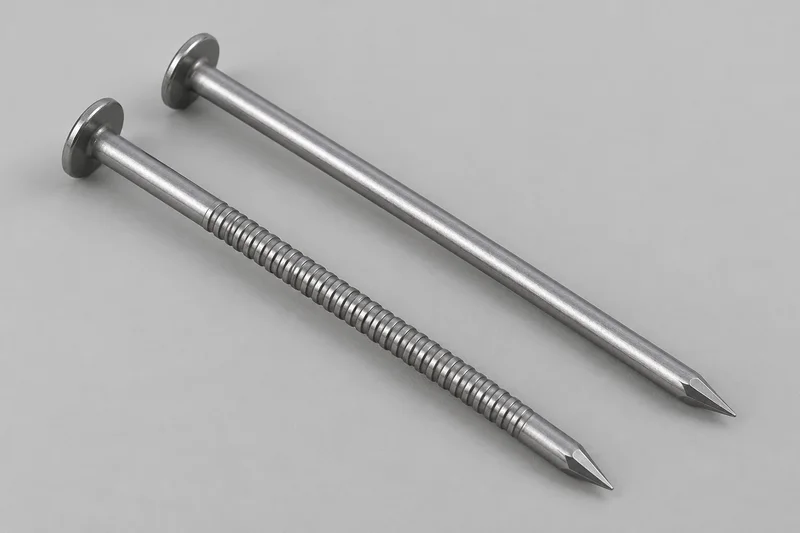

Does the reference image show our actual stock or certified product?

No. It is an AI-generated smooth/ring appearance reference, not an order sample, dimensioned drawing or conformity evidence.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
