Product and application brief

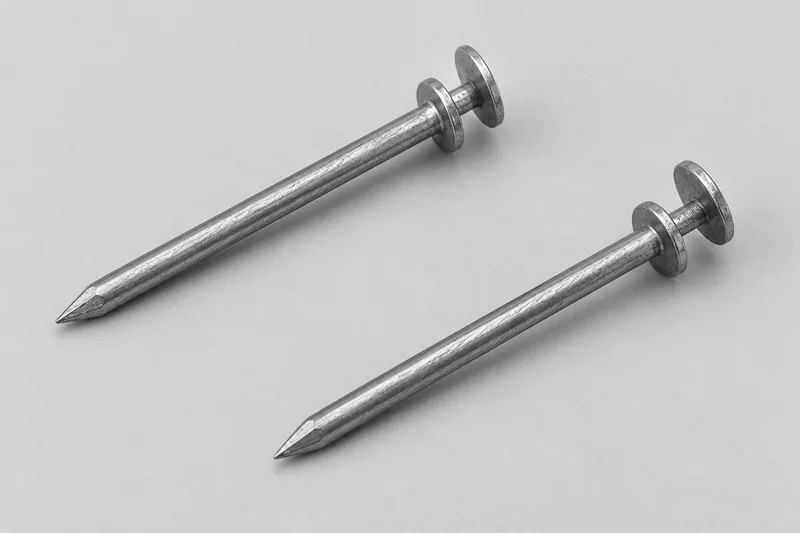

A duplex nail has two heads on one shank, rather than two pointed legs or a stainless-steel material designation. The lower head forms the seating boundary; the raised head provides an accessible pulling feature. Temporary use does not establish a structural design rating or permission to reuse a nail.
Product forms and reference names
| Choice or field | What to identify |
|---|---|
| Loose double-headed nail | Maze identifies its Brite Duplex examples as hand-driven, smooth-shank nails for temporary timber nailing. Selected product data are maker-specific, not FastenerBridge stock specifications. |
| Bright duplex catalogue reference | Can-Cell publishes a separate Bright Duplex Nails product sheet describing temporary construction and the double-head removal feature. Its selected sizes, finish and quantities require exact catalogue confirmation. |
| Tool-fed presentation | Do not assume a loose duplex nail can enter a nailer. Any proposed collated product requires its own fastener-series, collation geometry and released tool reference; no universal interface is supplied here. |
Two heads with different identification roles
Identify the lower seating head and the upper pulling head separately. Record each head diameter/profile, the spacing and neck geometry between them, and the shank/point. A single-headed common nail and a two-leg staple are different constructions.
Temporary timber connections, not generic concrete fixing
Temporary formwork and similar timber assemblies still need a project-specific joint selection. A form used for concrete does not make this a concrete-base nail. Describe the material actually receiving the shank and the part being attached; powered substrate pins and concrete anchors have separate routes.
Removal access is not a reuse guarantee
The upper head is an identification feature for access during dismantling, not a guarantee of damage-free removal, a removal force or repeat use. Access, adjacent finishes and the selected assembly must be considered. Inspection and disposition after removal require a controlled acceptance rule.
Standard identity and length measurement
ASTM lists F1667/F1667M-21a as active for driven nails, spikes and staples. Its public scope excludes most collation-medium and orientation requirements apart from workmanship. That identity alone does not prove a selected duplex model conforms; full normative dimensions and supplied-part conformity remain unverified. Define whether specified length is measured to the lower head or includes the raised head rather than inferring it from a penny/gauge label.
Specification fields
| Choice or field | What to identify |
|---|---|
| Construction and reference | Duplex/double-headed form; selected manufacturer reference or controlled drawing/revision; lower and upper head profiles and diameters; head spacing/neck geometry. |
| Length and shank | Length value and explicit measurement datum; shank diameter or cross-section; smooth/other defined shank; point form. Confirm label-to-dimension mapping. |
| Material and finish | Required material and finish specification; actual exposure and substrate compatibility; requested evidence. Bright appearance does not prove coating or corrosion resistance. |
| Assembly | Actual receiving timber/material and attached-part thickness; joint purpose and design requirements; head seating and later removal access per released project detail. |
| Presentation and interface | Loose packaging versus separately qualified collated reference; tool/manual installation selection. No generic nailer compatibility or installation settings. |
| Acceptance and commercial | Controlled dimensional inspection and documents; removal/disposition requirements; quantity/unit, packaging, marking, destination and requested date. Actual supply, MOQ and timing require quotation confirmation. |
Common product questions
Does duplex mean duplex stainless steel?
No. On this page duplex identifies a double-headed nail form. Material and grade must be specified separately.
Is this a concrete nail because it is used with formwork?
No. Identify the material receiving the shank. Timber formwork connections are not interchangeable with concrete-base fastening pins or anchors.
Can the removed nail automatically be reused?
No repeat-use or damage-free removal guarantee is made. Follow the controlled inspection and disposition requirements for the selected part and assembly.
Will a loose duplex nail fit any framing nailer?
No. Tool-fed fasteners need their exact collation and tool-series reference. Shape or a nominal size is not compatibility evidence.
Related product choices
- General single-headed connecting nails
- U-shaped two-leg staples
- Separate concrete and steel substrate fastening routes
Product references
References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
