Concrete and Steel Substrate Nails

Product detail · Updated 10 October 2026

Product and application brief

Concrete and steel substrate nails are not one interchangeable nail model. First identify a loose masonry nail for a selected manual installation, or a pin/nail belonging to a powered direct-fastening system. Then identify the actual supporting base and the part being attached. General connecting nails, locating pins and post-installed expansion anchors retain their separate product routes.

Product forms and reference names

Choice or field	What to identify

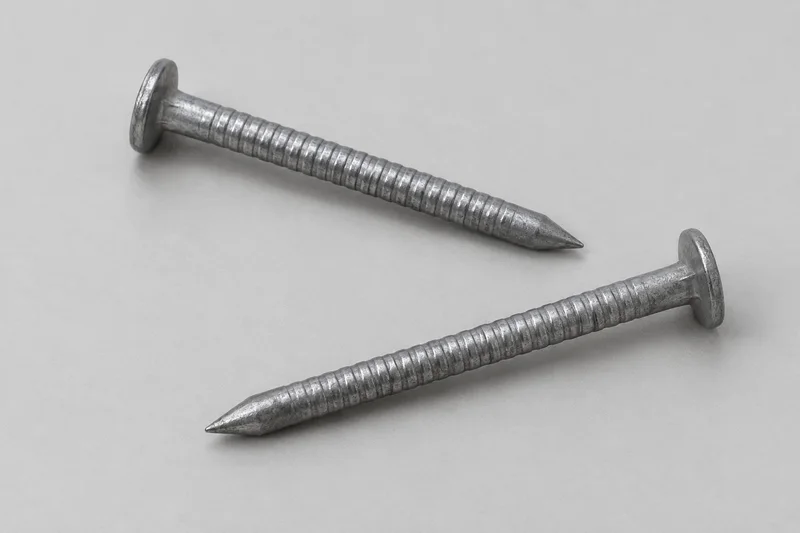

Loose masonry nail	Selected hardened masonry nails may have different head and shank profiles. pgb-Europe identifies both convex-head and ribbed countersunk forms. Specify the exact loose-nail geometry and released manual installation instructions; this is not a powder-actuated-tool compatibility claim.
System nail for concrete	fischer DFNH Plus NP is an example of a direct-fastening nail series tied to named installation tools and selected base-material conditions. Its model codes, approvals and dimensions are not generic equivalents or FastenerBridge supply evidence.
System nail for steel	Hilti X-U 15 / 20 MXSP identifies a collated steel-base nail for powder-actuated nailers. The product series and tool system must be selected together; steel-base use does not follow from a nail merely being made of steel.
Single, collated and accessory-equipped forms	Hilti separately lists single and collated constructions, including selected washer-equipped variants. Confirm supplied components, guide/collation geometry and exact system reference rather than substituting any loose nail of the same length.

Separate nail material from the supporting base

Steel nail describes the fastener material; steel-substrate nail describes the receiving base. Record both independently. Concrete strength/condition, masonry unit type and steel grade/thickness cannot be replaced by a general hard-surface label. A ribbed shank does not demonstrate the required hardness, penetration or installed holding resistance.

Manual masonry nail versus powered system pin

A selected loose masonry nail and a powered-system pin require different installation references. Confirm whether the specified method is manual, powder-actuated, gas-actuated or battery-powered, and provide the exact approved fastener/tool combination. Do not load an ordinary loose masonry nail into a powered tool or infer compatibility from similar head, shank or length. This page is an identification brief, not an operating or installation procedure.

Base material, attached part and joint qualification

Describe the receiving base separately from the attached material: for example, a steel track being attached to concrete has a concrete base, not a steel base. Provide the attached thickness and holes, access, service environment and controlled assembly document. Required penetration, fastener position, spacing, edge distance, head seating and inspection remain specific to the selected system and project. No universal penetration or capacity formula is supplied.

Standards and approvals are separate references

DIN EN 10230-1:2000-01 is listed current for loose general-application steel wire nails. ASTM F1667/F1667M-21a is listed active for driven nails, spikes and staples; its public scope excludes most collation-medium and relative-orientation requirements apart from workmanship. Neither title establishes that an arbitrary nail is approved for concrete or steel, or that it can be used in a particular powered tool. Keep the product specification, maker series, tool instructions and project-required approval document separate. Full normative dimensions and supplied-part conformity have not been verified here.

Specification fields

Choice or field	What to identify
Exact part and installation route	Controlled nail/pin reference or drawing revision; loose manual nail versus direct-fastening-system nail; specified standard edition and installation document.
Nail construction	Head profile and diameter; shank diameter/profile; point; length and datum; material/heat-treatment specification; finish; any washer, guide or other supplied component.
Receiving base	Concrete classification, condition and thickness; masonry unit type; or steel grade, strength and thickness as required by the selected system. Identify hollow, layered or otherwise uncertain bases separately.
Attached part and joint	Material and thickness of attached part, holes or attachment interface, actual stack, access and exposure; controlled installed-condition and inspection requirements.
Tool and presentation	Exact tool model and released fastener-series reference; single or collated presentation, guide/strip arrangement and pack quantity. Operating settings and consumables follow the selected official instructions, not a generic interchangeability claim.
Acceptance and commercial brief	Required dimensions, material/finish evidence and project documents; lot marking, quantity/units, packing, destination and requested date. Actual production scope, availability, MOQ and timing require quotation confirmation.

Common product questions

Can an ordinary steel nail be specified for a steel support?

Not by material name alone. Specify the actual steel-base fastening system, fastener reference and base/attached-part requirements. A masonry nail is not automatically a steel-base system nail.

Can a manual masonry nail replace a powered-tool pin?

No interchangeability is assumed. Their head, shank, guide, collation and installation route must be confirmed against the selected official system.

Is this a nail-in expansion anchor?

Not necessarily. An anchor using a plug or sleeve and a driven component has a different assembly and anchoring mechanism. Keep that selected anchor system separate from a nail driven directly into the base.

Are load values or approval certificates included?

No generic load, approval or supplied-part certificate is provided here. Require the exact product/system documentation and project qualification; a manufacturer example does not establish FastenerBridge certification or stock.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
