Product and application brief
This page covers earless clamping rings that are reduced around a receiving hose or component assembly. They are not ear clamps with a projecting pinch bridge, groove-retaining circlips, electrical terminal ferrules or wire-rope swage sleeves. Identify the complete ring and receiving connection before treating a similar circular part as a substitute.
Product forms and reference names
| Choice or field | What to identify |
|---|---|
| Cross-welded ring reference | Oetiker identifies stainless Multi Crimp Rings250 as cross-welded. Record the selected joint construction and part drawing; the maker's series number is not a FastenerBridge model or stock code. |
| Spirally-welded ring reference | Oetiker separately lists stainless Multi Crimp Rings150 as spirally welded. The joint path is a construction distinction, not permission to substitute it for a transverse weld at the same nominal diameter. |
| Puzzle-lock ring reference | Oetiker lists an aluminium150 puzzle-lock design separately. A mechanically joined band is not assumed to be a welded ring; exact lock geometry and installation requirements must follow the selected reference. |
Earless ring, not an ear clamp
A formed ear is a local closing feature of an ear clamp. The ring forms identified here do not use that projecting bridge as their closure. Specify the selected crimp-ring construction and assembly method rather than ordering a generic pinch clamp from outside diameter alone.
Joint form and band section need separate identification
Provide a controlled drawing of the joint, band width and thickness, edge requirements and pre-assembly ring condition. Distinguish a cross-welded, spirally-welded or puzzle-lock reference without claiming that their materials or performance are interchangeable. A generic reference image does not verify seam geometry, weld quality or an actual supplied part.
Specify the receiving assembly and crimp condition
Send hose/component and mating fitting drawings, assembled outside-diameter condition, permitted clamp position and tolerances. Identify which size is the pre-assembly ring diameter and which is the approved installed condition. Do not use hose inside diameter or an unloaded nominal ring size as a complete connection specification.
The selected swaging process determines acceptance
Ask for the required tool and die reference, access envelope, process-control method and documented installed inspection from the selected product instructions. This page does not supply jaw count, force, crimp diameter or universal tool compatibility. Sealing, pressure, temperature, removal/reuse and qualification depend on the complete ring, receiving components and accepted assembly process.
Specification fields
| Choice or field | What to identify |
|---|---|
| Product and joint identity | Earless clamping-ring form, selected maker/reference or controlled drawing, joint type, revision and units; no blanket DIN/ISO or brand equivalence |
| Band section | Width, thickness, edge condition and joint geometry with tolerances from selected specification |
| Pre-assembly size | Ring diameter datum and measurement condition, roundness requirements and receiving clearance from controlled drawing |
| Receiving connection | Assembled component outside diameter/tolerance, hose or boot material/reinforcement, fitting geometry and ring position |
| Installed condition | Required final geometry, inspection dimensions and permitted deformation defined by the approved assembly specification |
| Material and surface | Required designation, coating/surface condition, joint acceptance and documents; manufacturer reference materials are not supply evidence |
| Tool and process | Selected tool/die reference and process instructions, access and control method; no universal closing force or tool fit promised |
| Qualification | Requested service/media requirements and qualified connection inspection/testing; no generic leak-tightness, pressure, temperature or reuse rating |
| Order controls | Quantity, specification/drawing package, packing, destination and documents; actual supply and timing require quotation confirmation |
Common product questions
Is a crimp ring just another name for an ear clamp?
Not for the forms covered here. Ear clamps have a projecting formed closing ear; these earless ring constructions need their selected ring and swaging specification.
Can I choose it from hose inside diameter?
No. Identify the receiving assembled outside diameter, ring size datum, position and required installed condition.
Are welded and puzzle-lock rings equivalent?
No equivalence is assumed. Compare joint, band section, material, dimensions and qualified assembly requirements against controlled references.

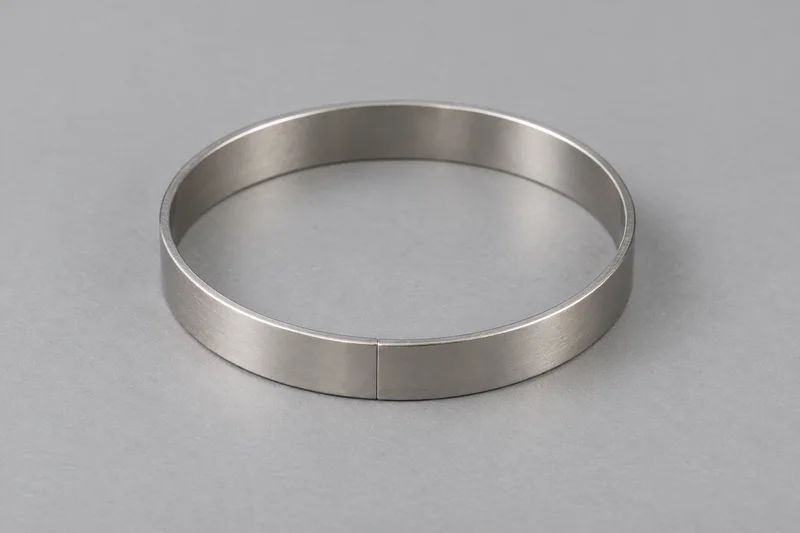

Does a generic ring image prove a weld or installed seal?
No. It is an appearance reference only, not seam-quality inspection, actual supply or connection-test evidence.
Can any crimping tool be used?
No compatibility is stated. Use the selected product's tool/die and qualified process documentation; electrical or wire-rope tools are not assumed suitable.
Related product choices
- Ear clamps: projecting formed closing ear
- Hose clamps: other band and closure constructions
- V-band clamps: separate flange connection interface
Product references
References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
