Product and application brief

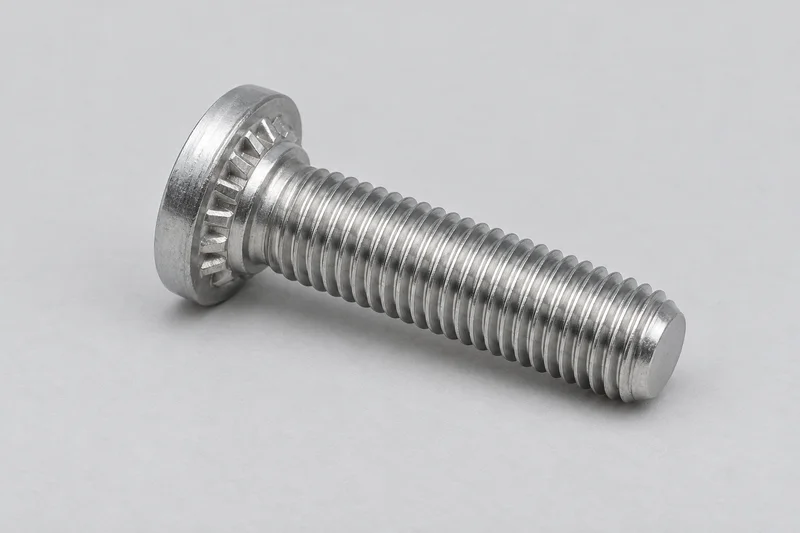

A self-clinching threaded stud provides an external screw thread attached to a metal panel. In the referenced flush-head construction, pressing displaces sheet material around retaining ribs and into an annular groove at the head. The installed stud can then receive a mating nut or threaded component. Choose the head-to-panel interface first, then the thread and usable projection; matching the external thread alone does not establish an interchangeable fastening system.

Product forms and reference names

Choice or field	What to identify
Flush-head through-hole stud	PennEngineering FH/FHS/FHA reference families use a prepared through hole and embedded head. Flushness applies under the selected minimum sheet-thickness and installation conditions, not to every panel.
Concealed-head stud	CHA/CHC/CFHA/CFHC catalogue examples retain the head in a milled blind mounting hole, leaving the opposite panel surface smooth. This is a blind receiving hole, not a blind female thread or a one-sided rivet installation.
Non-flush large-head stud	HFH/HFHS catalogue examples have a larger head projecting above the panel. Allow that head clearance; do not use the catalogue's general flush-head wording to classify this specifically non-flush family.
Thin-sheet non-flush form	The FH bulletin separately identifies TFH/TFHS thin-sheet studs and HFE/THFE heavy-duty thin-sheet forms. A thinner receiving panel does not justify pressing a normal flush-head code farther into it.
Low-displacement flush head	FHL/FHLS reference forms address a different head/displacement interface from ordinary FH/FHS. Head envelope and specified proximity to sheet edges are selection inputs, not permission for an arbitrary near-edge installation.
Forms intended for stainless receiving sheets	FH4/FHP reference families are distinguished from ordinary FHS material codes. Confirm receiving-sheet hardness and the selected material's corrosion, magnetic and temperature restrictions separately; no universal stainless-panel compatibility is implied.

Flush head and concealed head are not the same

A flush-head stud is installed through a prepared opening under its specified sheet conditions. A concealed-head stud instead enters a controlled blind pocket in the mounting panel. For the latter, specify pocket diameter/depth and the remaining material behind it, as well as the required opposite-face appearance. Neither the word 'concealed' nor an intact-looking outer face proves a watertight assembly. Do not substitute a through-hole form when the panel drawing requires an unbroken outside surface.

Separate the mounting hole from the attached-part clearance

The hole that retains the stud is in the receiving panel. A different clearance hole may be needed in the component fitted over the projecting shaft. Draw both interfaces, with their positional relationship. Specify usable thread projection and any near-head unthreaded/runout region from the selected part drawing, rather than assuming a nut can run to the head. The standard code and length code must be interpreted together; total part length alone does not define assembled engagement.

Sheet, head and tooling are a matched selection

Self-clinching depends on the receiving material flowing into the designed retention feature. Confirm panel grade, condition, hardness, thickness and coating/process stage against the selected fastener. The nut or stud material label is not a receiving-sheet approval. The FH bulletin also identifies code-specific tooling for stainless-panel forms; a press and a generic flat anvil are not automatically a compatible system. Obtain the current selected-code drawing and installation method before specifying tool geometry or press settings.

Installation retention is separate from the assembled joint

Panel pushout, rotation resistance and pull-through acceptance address the installed stud-to-panel interface. Thread strength and joint tightening requirements address another interface. Define the actual attached component, mating nut, bearing arrangement and required tests. A large projecting head may suit a different assembly envelope from a flush head, but this page does not transfer manufacturer catalogue strength, conductivity or tightening values to an unspecified supplied part.

Reference identities and substitution boundary

FH, FHS, TFH, FHL, HFH and CHA are manufacturer reference families, not a universal DIN/ISO interchange standard. They illustrate construction choices, not FastenerBridge branded stock, certification or authorised distribution. A welded stud, loose threaded rod and self-clinching stud have different attachment methods. If a drawing permits alternatives, compare the complete panel preparation, head profile, usable thread, material/finish, tooling and acceptance requirements before approving a substitute.

Specification fields

Choice or field	What to identify
Head and panel interface	Flush through-hole, concealed blind pocket or protruding head; panel faces that must remain smooth and the permitted installed envelope.
Mating thread and projection	Thread system, diameter/pitch, fit, usable length, runout/near-head clearance and mating nut or component; interpret the selected length-code drawing.
Receiving sheet	Alloy/grade, actual hardness/condition, thickness and coating/process stage, hole position, distance to edges/bends and adjacent hardware.
Mounting and clearance holes	Separate retaining-hole specification from attached-part clearance; for concealed heads include blind pocket depth and remaining wall requirement. Exact tolerances follow the controlled drawing.
Part identity and finish	Original manufacturer code or drawing/revision, head profile, material and finish; explicitly allowed substitutions and required documentation.
Installation access and support	Selected punch/anvil configuration, shaft clearance, panel support, seating direction and qualified process; no universal installation force supplied.
Inspection and joint acceptance	Specified head seating/flushness, projection, panel appearance, external-thread gauge/fit and agreed installed-retention or assembled-joint tests.
Procurement information	Quantity, packaging, traceability and drawing-based enquiry; actual production, approvals, inventory and delivery require confirmation.

Common product questions

Is a concealed-head stud just a countersunk through-hole stud?

No. The cited concealed family is installed into a milled blind panel hole and leaves the opposite surface unbroken. Obtain its pocket and remaining-panel requirements; do not infer them from a countersunk bolt drawing.

Does stainless stud material mean it can clinch into a stainless panel?

Not automatically. The manufacturer distinguishes codes for stainless receiving sheets. Verify selected-code panel hardness, material/finish restrictions and tooling.

Can a large-head heavy-duty stud be treated as flush?

Not assumed. The referenced HFH/HFHS family is specifically classified non-flush and has a projecting head. Check the head-side clearance against the assembly drawing.

Are thread size and shaft length enough for an enquiry?

Also provide head/retaining construction, panel grade/hardness/thickness, both hole interfaces, usable engagement and installation/acceptance requirements. Loads, torque, exact dimensions, approvals, reuse/temperature, manufacture, stock and delivery remain separately unverified.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
