Self-Clinching Standoffs

Product detail · Updated 10 October 2026

Product and application brief

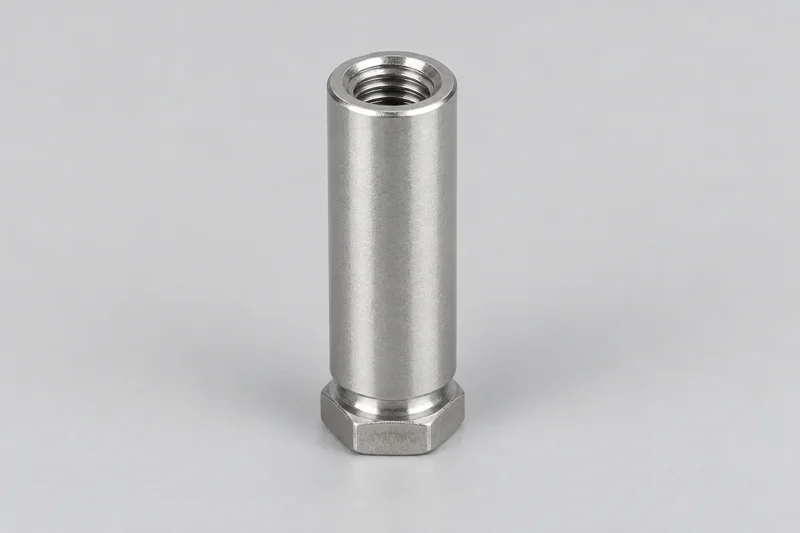

A self-clinching standoff creates an attached spacing point in a metal panel. The barrel separates the panel from a second component, while a prepared mounting interface retains the fastener in the sheet. Choose the bore function independently from the spacing requirement: a threaded bore accepts a mating screw, whereas an unthreaded bore is a clearance passage. This page identifies these choices without treating a loose spacer, welded part or circuit-board press-fit part as the same construction.

Product forms and reference names

Choice or field	What to identify
Through-hole threaded	PennEngineering SO/SOS/SOA reference forms provide a screw-thread interface with an open axial passage. Their catalogue describes a head seated flush with one mounting-sheet face under the selected installation conditions; an open passage does not establish full-length usable thread.
Blind threaded	BSO/BSOS/BSOA reference forms have a closed end and accessible female thread. The catalogue describes a flush, closed outer sheet-side surface after installation. Blind refers to the fastener bore here, not a blind pocket machined in the receiving panel.
Through-hole unthreaded	SO/SOS/SOA unthreaded reference forms provide clearance through the barrel for spacing multi-panel assemblies. An unthreaded bore diameter is not a mating thread size; name the required clearance function explicitly.
Thin-sheet threaded forms	TSO/TSOS/TSOA references use a distinct thin-sheet clinching interface. The SO bulletin distinguishes through-threaded, limited tapped-depth and blind styles; select the exact style and receiving-sheet conditions rather than assuming every length has a through thread.
Round-head close-to-edge form	DSO/DSOS references use a round knurled head rather than the ordinary head form. Treat the selected edge distance and tooling as code-specific; the family name does not permit arbitrary placement next to a bend or edge.
Grounding-end form	SOSG/SOAG examples have gripping teeth at the component-contact end. Define the actual electrical contact interface and acceptance separately; neither a threaded metal barrel nor an AI appearance image proves a qualified grounding path.

Blind bore, through bore and mounting hole are different

Draw the receiving-panel mounting hole separately from the fastener's axial bore and the second component's clearance hole. In the cited blind-threaded family the fastener closes the outer mounting-sheet face, but installation still uses the specified round sheet opening. This is not the concealed-head stud method with a milled blind panel pocket. A through-bore version instead leaves an axial passage. Neither configuration establishes leak-tightness, enclosure ingress protection or electrical insulation without an approved assembly design.

Usable thread depth is not the stand-off length

State the required assembled gap with its measuring faces, then identify the selected drawing's length datum and usable female-thread depth. A blind-end screw must engage as specified without bottoming; a through passage may have a threaded region and an unthreaded region. Check screw length against the complete stack and any hardware or circuit-board clearance beyond the barrel. Do not convert a catalogue length code into a guaranteed panel-to-panel gap without reading that drawing.

Panel, head and installation access

Confirm receiving-sheet alloy, hardness/condition, thickness, finish and process stage, plus the mounting-hole specification and clearance to edges, bends and other fasteners. Catalogue SO4/BSO4 distinctions for stainless receiving sheets are separate from the fastener simply being stainless. The SO installation reference requires the selected support/punch arrangement and controlled seating; 'blind' does not mean a one-sided rivet-setting method. Do not prescribe a universal hole tolerance, press force or tool.

Spacing and retention need separate acceptance

Specify seating, installed projection/gap, thread or clearance-bore inspection and the agreed fastener-to-sheet retention tests. Separately define mating screw, supported component and joint tightening/acceptance requirements. Support and assembly geometry matter: a standoff selected to establish a gap is not automatically an electrical isolator, a certified earth connection or a structural load-rated post. Manufacturer test tables cannot be transferred to an unspecified supplied part or receiving sheet.

Reference families and substitution boundary

The cited manufacturer codes identify construction choices, not a universal DIN/ISO interchange standard, FastenerBridge stock or authorised distribution. Broaching and soldered surface-mount standoffs are different attachment technologies. A loose spacer or externally threaded clinch stud also has a different fastening interface. Keep the drawing revision, bore function, installed envelope, material/finish, receiving-sheet eligibility and installation method together when a substitute is considered.

Specification fields

Choice or field	What to identify
Bore function	Through threaded, blind threaded or unthreaded clearance; identify the closed/open panel-side requirement and selected style.
Installed spacing	Required gap and measuring faces, barrel envelope, length-code drawing, panel/second-component stack and allowed projection.
Mating interface	Thread system, diameter/pitch, fit and usable engagement; or clearance bore specification. Mating screw length must respect blind depth and rear clearance.
Receiving sheet	Grade/alloy, hardness and condition, thickness, coating/process stage, mounting-hole specification and edge/bend clearances from the selected drawing.
Head and component-contact end	Clinching head profile; ordinary or toothed contact face; permitted surface marks and assembly/electrical-contact acceptance where required.
Installation	Selected punch/anvil and support, head seating direction, barrel clearance and both-side access; controlled installation reference, not universal settings.
Inspection and documentation	Seating/gap, thread/clearance inspection, agreed retention and joint tests, drawing revision, lot traceability and any required qualification documents.
Procurement	Quantity and packing by selected drawing/material/finish; actual manufacture, approvals, stock, substitutions and delivery require order confirmation.

Common product questions

Does through-hole mean the entire bore is threaded?

No. Through-hole describes the passage; threaded and unthreaded versions both exist, and some styles have a limited tapped depth. Specify usable engagement or clearance separately from stand-off length.

Is a blind standoff installed in a blind panel pocket?

Not the cited BSO/BSOS/BSOA construction. It uses the specified round mounting opening and a closed fastener end. A concealed-head stud installed in a milled blind panel pocket is a different interface.

Does blind mean it can be installed from one side?

No one-sided installation is established here. Follow the selected self-clinching punch, support and access requirements; do not substitute a rivet-nut setting process.

Is a metal standoff automatically a grounding or insulating part?

No. The grounding references have a specific component-contact end; actual electrical contact, isolation and qualification must be defined and tested for the assembly. No electrical or load guarantee follows from the material or image.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
