A complete assembly, not only a rod
A tension tie-rod enquiry can include rod sections, end fittings, pins and an adjustment component. Identify whether the request is for an individual replacement component or a complete defined assembly. A bare all-thread rod or a rigging turnbuckle does not establish the same system.
End fittings and adjustment interfaces

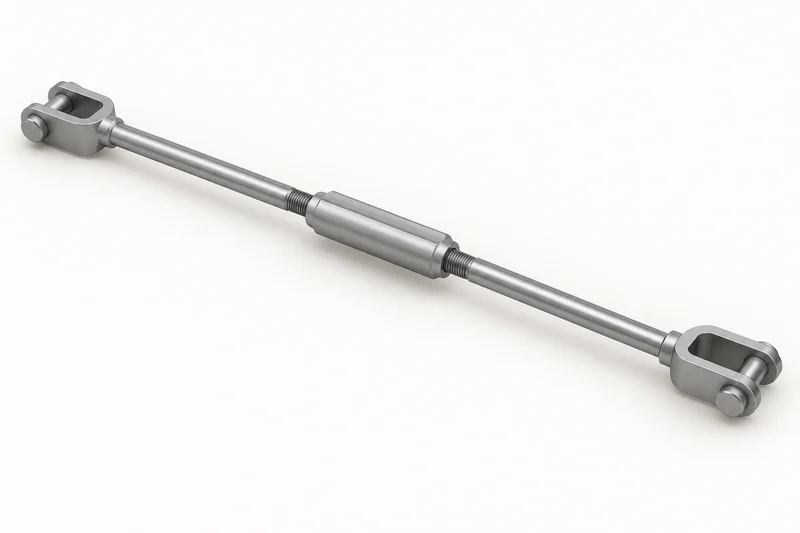

Manufacturer systems illustrate fork ends and pins, turnbuckles and couplers as distinct component roles. The generic illustration shows two rod sections, a central adjustment body and fork/pin terminals; it is only one representative arrangement. Other end constructions must follow the selected controlled drawing.
Specify each mating thread independently, including designation, hand, fit and drawing-defined engagement requirements. Do not assume that arbitrary rods and fittings are interchangeable or that two visible threaded ends have the same hand.
Assembled length versus component length
Keep the drawing-defined assembled datum, such as pin-centre to pin-centre, separate from rod length, fitting length and the required adjustment position or interval. Identify the supplied configuration and the datum at which a length is required. An overall dimension copied from a bare rod does not define the assembled connection.
Prepare an assembly enquiry
| Requirement | Provide for review |
|---|---|
| Identity | Controlled assembly drawing and revision, selected system reference and any specified standard edition; complete assembly or enumerated replacement parts. |
| Rod sections | Section geometry, individual lengths and datums, end threads and specified tolerances from the drawing. |
| Terminals and pins | End-fitting references, fork opening and mating plate interface, pin and retention details, with receiving-component drawings. |
| Adjustment | Connector reference, mating thread designations and hand, specified adjustment position or interval and engagement requirements for engineering review. |
| Assembly datum | Pin-centre or other controlled datum, required assembled length and configuration, units and tolerances. |
| Order and evidence | Separate component material/finish requirements, quantity in assemblies or parts, destination, traceability and project-required inspection or qualification documents. |
Drawing brief example
Assembly drawing/revision: ___; component list: ___; assembled length/datum/configuration: ___; end A interface: ___; end B interface: ___; central adjustment component: ___; each thread designation/hand: ___; material and finish by component: ___; quantity/unit: ___; required documents and unresolved requirements: ___.
This is an unfilled specification outline, not an available standard model or a connection-design instruction.
Selection boundaries
No universal load rating, preload, installation torque, engagement value, material grade, approval or installation procedure is prescribed here. Dimensions and tolerances must come from the selected drawing. Supply scope and commercial facts require order-specific quotation confirmation; manufacturer source evidence does not establish FastenerBridge affiliation, stock or qualification.
Structure sources and limitations
Independent manufacturer references were checked for component roles and length-datum distinctions. Their proprietary system dimensions, capacities, grades, installation instructions and approvals are not reproduced or claimed for this enquiry family.
