Prepare your product enquiry
Identify the retaining-ring form and its mating shaft or housing before requesting a price. A free-state ring measurement is not a substitute for the specified installed diameter and groove geometry. Final suitability must follow the approved assembly design.
External shaft circlips
Specify external shaft installation, the ring reference and nominal shaft diameter. Send the groove dimensions and tolerances, ring thickness, material and access requirements.
Enquire about External shaft circlips →
Internal bore circlips
Specify internal housing or bore installation. Include nominal bore size and the controlled groove diameter, width and related tolerances; do not substitute an external shaft ring of a similar apparent size.
Enquire about Internal bore circlips →
E clips
Identify the E-clip part reference or drawing. Send the shaft and groove requirements, material, finish, quantity and any specified installation or removal constraints.
Drawing-defined ring requirements
For a non-standard profile, send the approved drawing, mating groove and acceptance requirements. Any alternative geometry or material is subject to explicit review, not automatic substitution.
Enquire about Drawing-defined ring requirements →
Quotation information checklist
These fields describe order inputs, not a stock table or engineered acceptance criteria.
| Requirement | Information to provide |
|---|---|
| Installation location | External shaft or internal housing/bore; exact ring style and reference |
| Mating diameter | Nominal shaft or bore diameter, units and tolerances |
| Groove | Controlled diameter, width, edge detail and relevant drawing tolerances |
| Ring | Thickness, free-state dimensions where specified, material, hardness and finish |
| Assembly conditions | Required clearance, installation access and approved service requirements |
| Order controls | Drawing revision, quantity, inspection documents, packing and destination |
Common purchasing questions
Are retaining rings the same as washers?
No. These retaining-ring enquiries concern parts specified for shaft or housing retention. A flat washer is a different product family.
Should I quote the free ring diameter or shaft/bore size?
Provide the exact ring reference together with the specified mating diameter and groove drawing. Include free-state ring dimensions only where the drawing or product reference requires them.
Does a ring photograph establish load capacity?
No. Ring and mating-groove requirements must be checked against the approved design and product-specific technical data. The display image does not establish a rating.

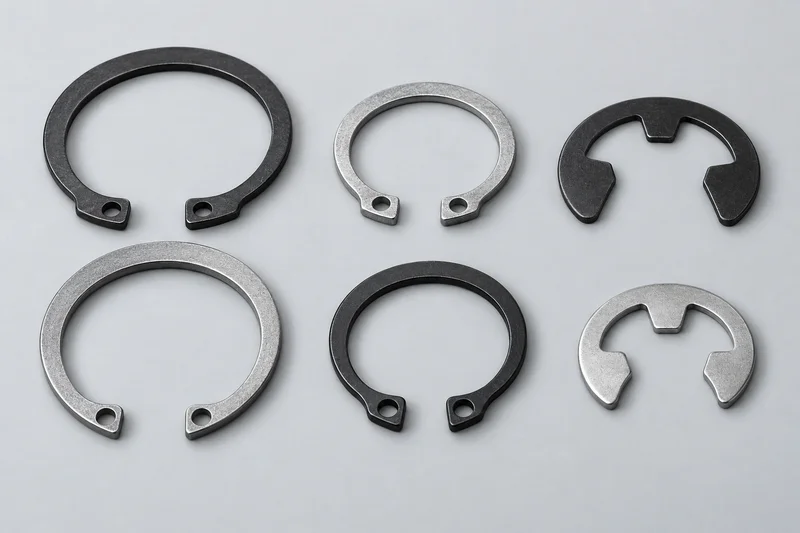

MOQ, production timing, material availability, finish and inspection scope are confirmed for the final specification. Product images illustrate appearance only; they do not establish dimensions, approvals or load ratings.
Related products and order guides
- Specification checklist for Retaining Rings & Circlips
- Pins
- Inspection & Packing Checklist
- Drawing-based custom requirements
Technical context and scope
General references checked 4 October 2026. These sources explain product terminology and specification fields; their product data, certifications and performance values are not FastenerBridge supply claims. Use the exact selected product reference and approved drawing for final requirements.
