Product and application brief

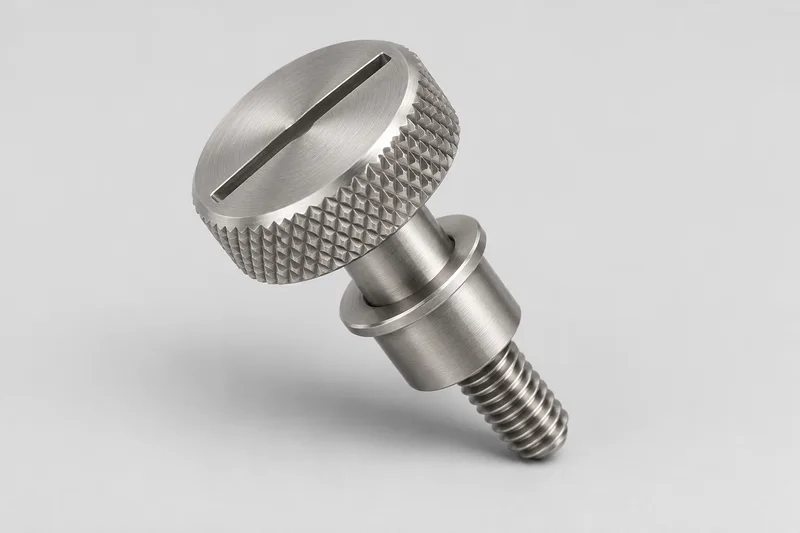

A captive panel screw stays associated with a removable panel after it is disengaged from the mating thread. Identify the retention arrangement, screw and receiving thread as separate interfaces. An ordinary thumb screw, machine screw or panel-mounted nut alone does not establish this retained assembly.
Product forms and reference names
| Choice or field | What to identify |
|---|---|
| Simple retained screw | A retained screw can rotate and move through its permitted axial travel without a return spring. Retention may use a separate retainer or a selected panel-attached construction; identify the exact assembly. |
| Spring-return assembly | A spring acts between the screw head and retainer to bias the loosened screw toward a released position. Whether the tip clears the underside of the panel depends on the selected geometry and travel, not the presence of a spring alone. |
| Head and actuation options | A knob or a recessed/tool-driven head is a separate selection axis. Hand access, drive recess, envelope and released/engaged head position require confirmation; a recessed head does not establish a security approval. |
| Retainer mounting | Self-clinching, broaching, flare-mounted and surface-mount constructions are distinct catalogue routes. Some selected retainers permit lateral float. Do not apply one panel preparation or installation method to another route. |
Panel, retainer and installation access
State the panel material, hardness, thickness, finish, hole preparation and edge clearance. For a clinching retainer, use the selected receiving-sheet and tooling requirements. Flare mounting deforms a mounting feature by a different process; broaching and board surface mounting also have separate interfaces. Select the route before releasing the panel drawing.
Thread engagement and released tip clearance
Specify metric or inch thread designation and tolerance, mating nut or tapped-part location, assembly grip and required engagement. Record the tip position and screw travel both engaged and fully released. Do not infer bottom-surface clearance, no-scratch behaviour or adequate engagement from overall screw length alone.
Axial travel and lateral float are different
Axial travel allows the screw to move along its own axis. A floating mounting arrangement provides a separate permitted lateral adjustment. State which movement is required, the position stack-up and controlled limits. Neither movement makes every mismatched thread or hole acceptable.
Retention is not thread locking
Keeping a loosened screw on a panel reduces loose hardware, but does not by itself prevent the assembled joint from loosening. State any required locking, retention or repeated-service qualification separately. No generic pullout load, tightening torque, spring life, reuse count or vibration rating is supplied here.
Kit contents and mating hardware
Say whether the enquiry is for a complete screw/retainer/spring assembly, a screw alone or replacement parts. Identify the matching nut or receptacle and whether it is included. A quarter-turn panel fastener, auto-lock plunger, cage nut or loose screw is a different product choice rather than an equivalent captive screw.
Catalogue identities and standards boundary
PEM PFHV, PF7MF and PF50 are examples of maker references for different captivated-screw constructions. They are not universal DIN/ISO identifiers and are not a claim of FastenerBridge brand authorisation, stock or compliance. Use the exact selected-code drawing and applicable project specification; no general dimensional equivalence is asserted.
Specification fields
| Choice or field | What to identify |
|---|---|
| Assembly identity | Drawing or exact maker reference/revision; simple or spring-return; head/drive and separate mounting route. |
| Screw and mating thread | Thread system, diameter, pitch and tolerance; mating part/reference; grip, engagement and receiving-thread depth. |
| Positions and travel | Installed and released head/tip positions, overall-length convention, axial travel, envelope and required lateral float if any. |
| Panel preparation | Material, hardness, thickness and finish; hole/edge geometry, mounting feature and access for selected tools. |
| Acceptance | Installed retention, movement/engagement inspection and any project-specific joint, service-life or environmental verification. |
| Order scope | Complete assemblies or named components, included mating hardware, material/finish, quantity, documents, packing and destination. |
Common product questions
Does captive mean self-locking?
No. Screw retention on the panel and resistance to joint loosening are separate requirements.
Does every spring-loaded screw retract flush below the panel?
No. Confirm the released tip position and travel for the selected assembly and panel thickness.
Can one receiving hole be used for clinch and flare-mounted retainers?
Do not assume so. Their mounting features and panel preparation follow different selected drawings.
Is a knob cap screw necessarily hand-only or tamper-proof?
No. Identify the actual drive/head arrangement and access requirements. Any security qualification requires specific evidence.
Related product choices
Product references
References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
