Roofing Nails

Product detail · Updated 10 October 2026

Product and application brief

Roofing nails are driven fasteners selected for a roof covering or membrane and its supporting substrate. A broad head is a useful identification feature, but the name alone does not define the head profile, shank, coating, packing or approved assembly. This detail focuses on broad-head forms and keeps ordinary connecting nails, finish nails and roofing screws separate.

Product forms and reference names

Choice or field	What to identify

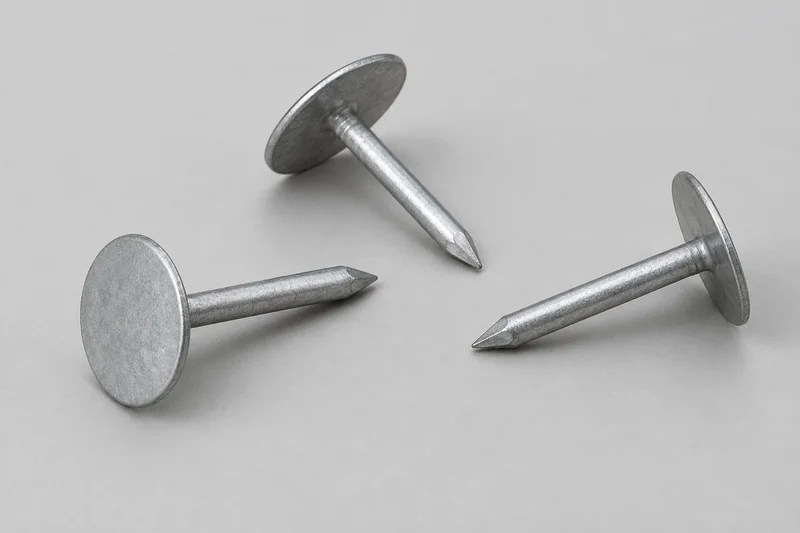

Flat-head clout nail	A broad flat round head and round shank identify the selected clout construction. Simpson Strong-Tie PAPP provides an example for roofing felt and membranes on timber; its exact model properties are not generic supply claims.
Smooth-shank roofing coil nail	SENCO lists a smooth-shank example with full round head, diamond point and angled wire-coil presentation. The selected product reference, not the term roofing coil, defines the actual geometry and tool interface.
Ring-shank or other profiled roofing form	Identify the actual shank profile separately from the head. Simpson Strong-Tie lists ring-shank roofing constructions; this does not make any ring-shank framing nail a roofing-covering nail or establish a holding load.
Bell head, washer or cap construction	These are not an unannounced substitute for a flat disc head. State whether the head is integral, whether any separate washer or cap is supplied, and the selected roof system. No generic sealing or weatherproofing guarantee follows from the name.

Head contact geometry is a separate specification

Record the head diameter, thickness, top profile and underside bearing shape independently of shank diameter. Describe the covering that the head contacts and whether a washer or cap is required. A generic photograph cannot establish the allowable contact area, installed head position or resistance to pulling through a covering.

Covering, support and installation must be identified together

Give the roof covering or membrane reference, all intervening layers, support material and thickness, and the approved fastening document. Covering attachment is not automatically structural roof-sheathing attachment. Concrete or steel supports require a separately selected system; do not infer their suitability from a timber roofing-nail example. Required penetration, spacing, edge distance and installed condition remain project-specific inputs, not a universal length formula.

Loose nails and coil nails are different purchase presentations

Specify loose quantity or the exact collation medium, angle, nail arrangement, coil dimensions and pack count. Confirm the tool model and its released fastener-series reference. A common angle or shank diameter alone does not establish magazine or driving compatibility. A loose nail is not converted into a qualified coil product simply by matching its nominal length.

Standard identities and model boundaries

DIN EN 10230-1:2000-01 identifies loose steel wire nails for general applications and is listed as current by DIN Media. It replaces older DIN documents including DIN 1160:1973-04; an old clout-nail label is not a current compliance claim. ASTM F1667/F1667M-21a is listed active for driven nails, spikes and staples. Its published scope excludes most collation-medium and relative-orientation requirements, apart from workmanship. Neither catalogue identity establishes conformity, roof-system approval or tool compatibility for a supplied item. Full normative dimensional tables and inspection requirements have not been verified here.

Specification fields

Choice or field	What to identify
Part identity	Selected product or controlled drawing number and revision; applicable standard and edition if specified; flat head versus other head or separate cap/washer.
Nail geometry	Shank diameter or profile; smooth, ring or other defined shank; head diameter, thickness and bearing profile; point form; nail length and measurement datum.
Roof assembly	Covering or membrane reference; layer stack; support material, grade, thickness and condition; exposure; approved fastening pattern and installation document.
Material and finish	Exact material and coating designation; required inspection evidence; compatibility with covering, support and exposure. No corrosion duration or sealing performance is assumed.
Presentation and interface	Loose or collated; exact medium, angle and coil/pack arrangement; tool model and released fastener reference; supplied washer/cap status where applicable.
Acceptance and commercial brief	Inspection dimensions and documents, lot identification, quantity and units, packaging, destination and requested date. Actual available scope, MOQ and timing require quotation confirmation.

Common product questions

Is a roofing nail the same as a general connecting nail?

Not solely by name. Specify the covering contact head and actual roof stack. The general connecting-nail page does not establish the broad-head covering attachment required here.

Does every roofing nail need a washer or plastic cap?

No universal construction is specified here. Flat-head clout forms and selected washer/cap or bell-head systems must be identified separately. The roof-system document determines the selected arrangement.

Will a roofing coil fit any nailer with the same angle?

No. Confirm the exact fastener reference and tool interface, including head and shank geometry, collation medium and coil arrangement. Shared angle is insufficient.

Can this page provide a roof load, fixing pattern or conformity certificate?

No. Those require the exact supplied-part documentation, selected roof assembly and project approval. The references identify structures and purchasing fields only.

Product references

References checked 10 October 2026 identify structures, not FastenerBridge stock, certification or brand affiliation. Final requirements follow the selected specification. No universal dimensions, load rating or tightening torque is stated.
